Clarion 5 Channel Marine Amplifier

Clarion 5 Channel Marine Amplifier

Item # 13-075 | Clarion

Standard

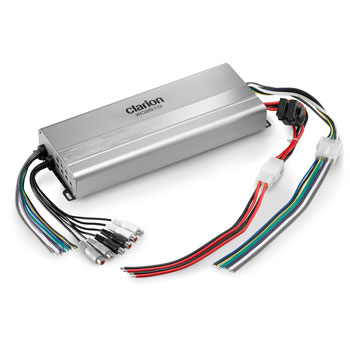

Clarion 5 Channel Full Range Marine Amplifier. A complete, all-in-one, total system power solution in a compact chassis.

Features:

  • 700 Watts of Maximum Power Output
  • 75 Watts X 4 + 300 Watts X1 @ 2 Ohms
  • 50 Watts X 4 + 200 watts X1 @ 4 Ohms
  • 150 Watts X2 @ 4 Ohms Bridged
  • 0-12dB Bass Boost @ 50Hz (Ch.5)
  • ≥70dB SN Ratio

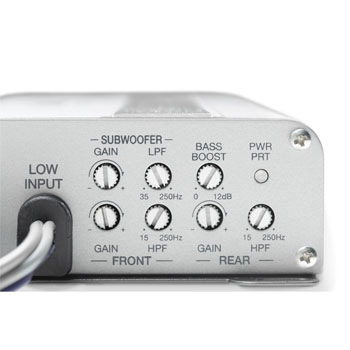

  • Independent Variable Gain Control
  • 6-Channel RCA Input
  • 4-Channel High Level Input
  • Pigtail Connections
  • 15-30kHz Frequency Response (Ch.1-4) 15-250Hz (Ch.5)
  • 15-250Hz Variable 12dB/Oct High-Pass Crossover (Ch.1-4)
  • 35-250Hz Variable 12dB/Oct Low-Pass Crossover (Ch.5)
  • Double Layer PCB
  • Dimensions: 11.02”(W) x 4.33"(L) x 1.54”(H)
  • Clarion Product #XC2510

Additional Clarion Components:

  • Head Unit:
    • Clarion Gauge Style AM/FM USB Bluetooth Media Receiver #13-069
  • Speakers:
    • Clarion 10" DVC Marine Subwoofer w/RGB Lighting #13-073
    • Clarion 6.5" Marine Coaxial Tower Speakers w/RGB & Mounting #13-072
    • Clarion 6.5" Marine Coaxial Speakers w/RGB Lighting (Pair) #13-071
    • Clarion 6.5" Marine Coaxial Speaker Pair #13-070
  • Amplifiers:
    • Clarion 4 Channel Marine Amplifier #13-074
  • Accessories:
    • Clarion 2-channel Marine Audio Interconnect Cable #13-080
    • Clarion 25 ft White 16 AWG, Parallel Conductor Speaker Cable #13-078
    • Clarion 6 AWG 12V Power Marine Connection Kit, Single Amplifier #13-077
    • Clarion 30 Amp Rotary Marine Lighting Controller w/ WiFi #13-076
